250x122 Resolution 2.13 Inch e-Paper Display HAT E-Ink Screen LCD Module SPI Interface with Embedded Controller for Raspberry Pi 2B 3B 3B+ 4B Zero Zero W/Ardui/STM32/Jetson Nano
4.6 (140 items)
Limited Time SaleUS$14.39 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 221130170 | Release Date | 2026/05/03 | List Price | US$9.60 | Model Number | 221130170 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

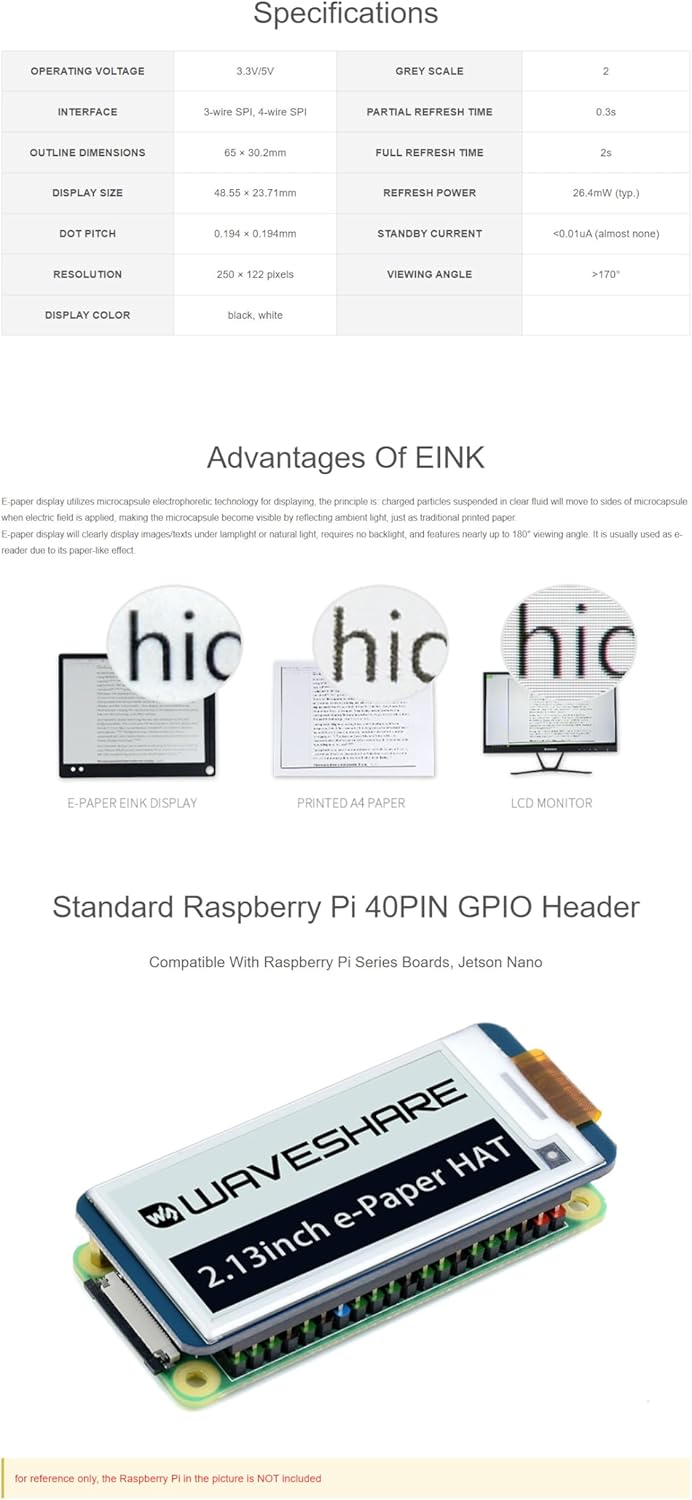

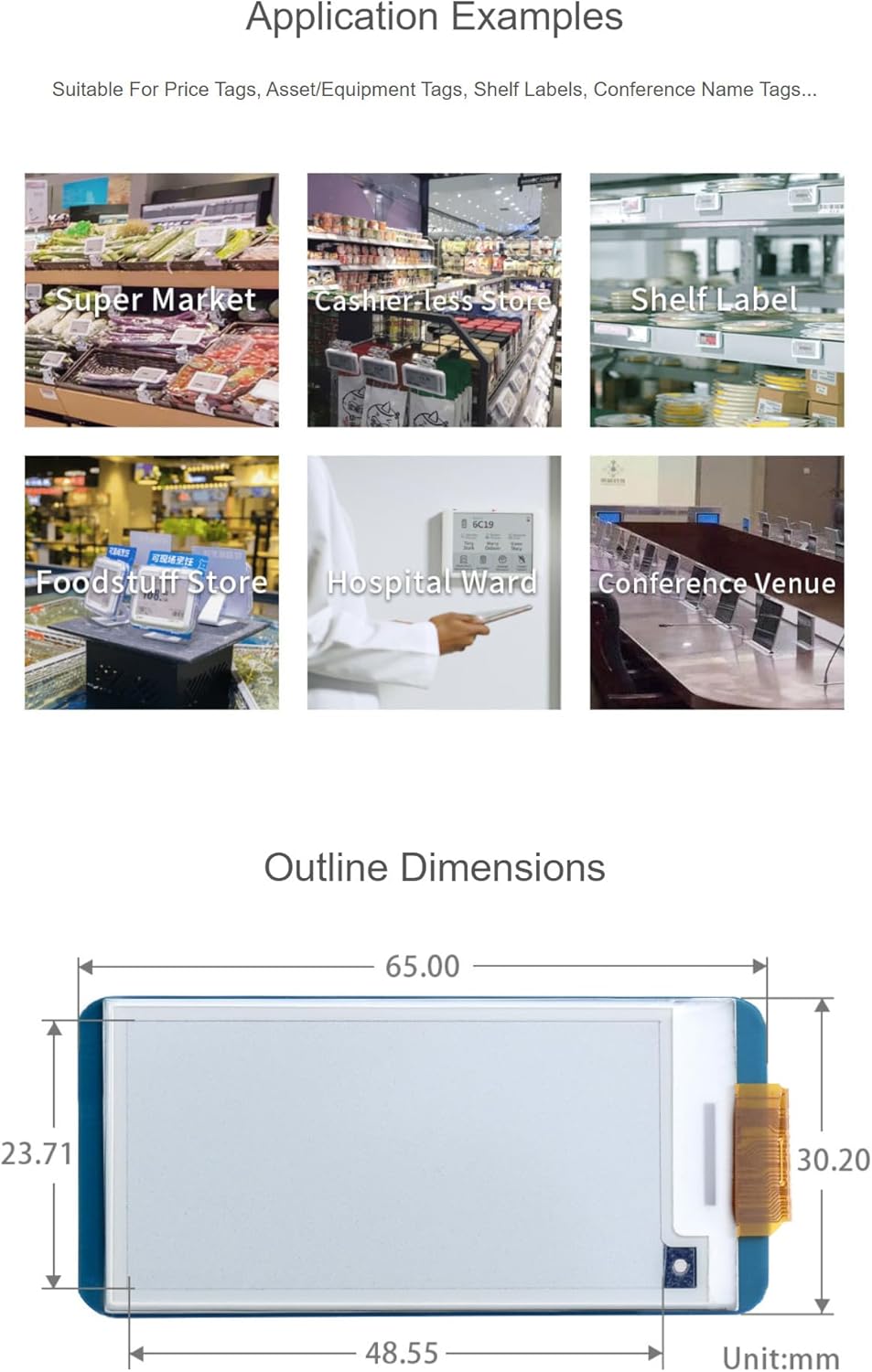

Overview This is an E-Ink display HAT for Raspberry Pi, 2.13inch, 250x122 resolution, with embedded controller, communicating via SPI interface, supports partial refresh. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on. Features No backlight, keeps displaying last content for a long time even when power down Ultra low power consumption, basically power is only required for refreshing Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano Preserved solder pads for SPI interface, for connecting with other controller boards like Ardui/Nucleo, etc. Onboard voltage translator, compatible with 3.3V/5V MCUs Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Ardui/STM32) Specifications Operating voltage: 3.3V/5V Interface: SPI Outline dimension: 65mm 30.2mm Display size: 23.71mm 48.55mm Dot pitch: 0.194 0.194 Resolution: 250 122 Display color: black, white Grey level: 2 Partial refresh time: 0.3s Full refresh time: 2s Refresh power: 26.4mW(typ.) Standby power: <0.017mW Viewing angle: >170° Package Content 1. 2.13inch e-Paper HAT x1 2. RPi screws pack (2pcs) x1 3. PH2.0 20cm 8Pin x1
- No backlight, keeps displaying last content for a long time even when power down;Ultra low power consumption, basically power is only required for refreshing
- Standard for Raspberry Pi 40PIN GPIO extension header, fits Raspberry Pi series boards, Jetson Nano

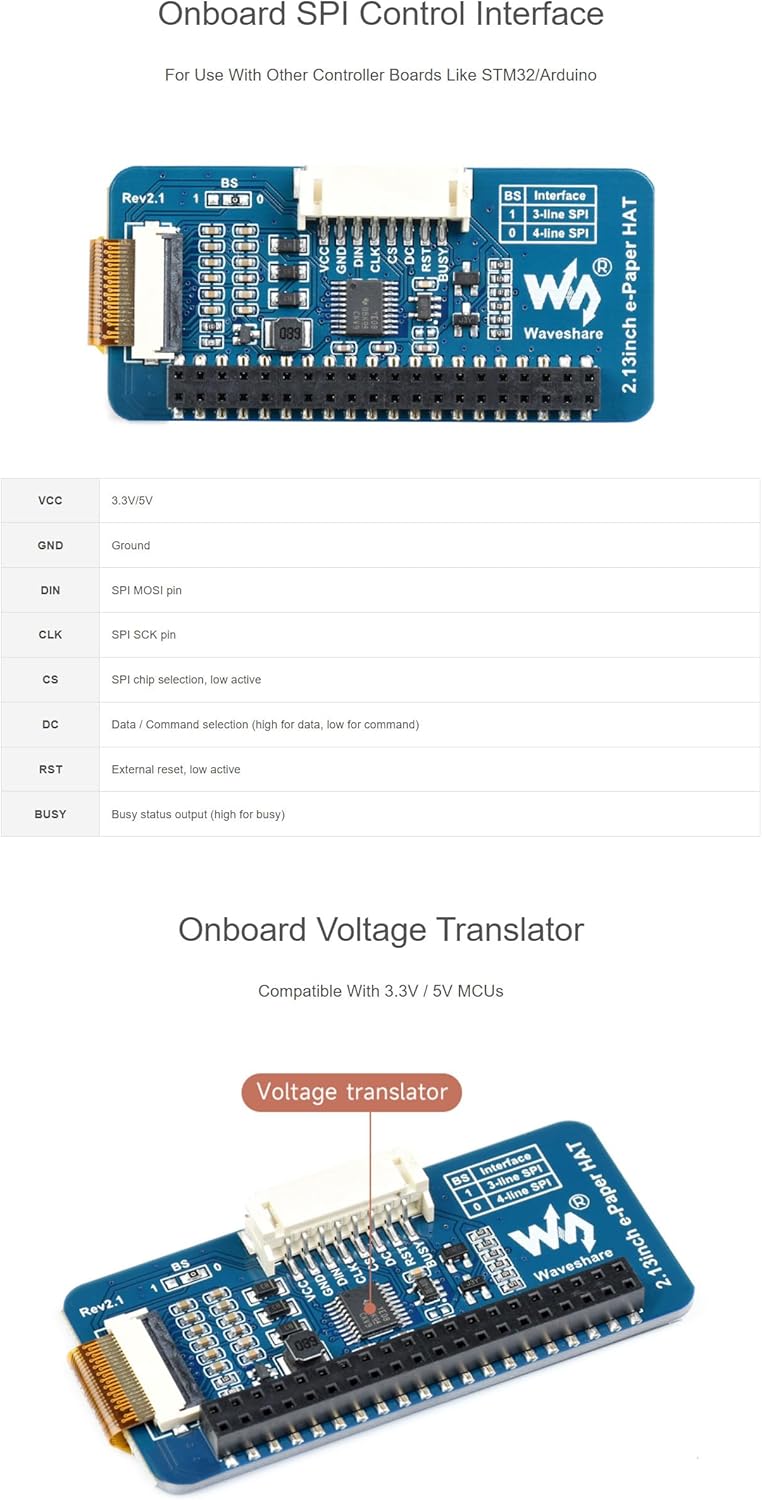

- Preserved solder pads for SPI interface, for connecting with other controller boards fits Arduino/Nucleo, etc.
- Onboard voltage translator, compatible with 3.3V/5V MCUs
| UPC | 615311268072 |
|---|---|
| Brand | waveshare |
| Color | Default |
| RAM Type | DDR3 SDRAM |
| Model Name | 2.13inch E-Ink HAT 250x122 |
| Resolution | 250 x 122 |
| Style Name | Minimalist |
| Unit Count | 1.0 Count |
| Item Weight | 0.01 Kilograms |
| Screen Size | 2.13 Inches |
| Aspect Ratio | 16:9 |
| Display Type | E-Ink |
| Manufacturer | Waveshare |
| Model Number | 2.13inch E-Ink HAT 250x122 |
| Video Output | HDMI |
| BuiltIn Media | 2.13inch e-Paper HAT, PH2.0 20cm 8Pin, RPi screws pack (2pcs) |
| Cooling Method | Passive/Natural Convection |
| Item Dimensions | 1.18 x 0.79 x 0.08 inches |
| Keyboard Layout | QWERTY |
| Power Plug Type | No Plug |
| Processor Brand | VIA |
| Processor Count | 1 |
| Video Processor | Broadcom |
| Operating System | Linux |
| Processor Series | Cortex |
| Graphics Ram Type | SRAM |
| Native Resolution | 250x122 |
| Compatible Devices | Raspberry Pi, Jetson Nano, Arduino, Core |
| Hardware Interface | Ethernet |
| Additional Features | Display |
| Hard Disk Interface | Serial ATA |
| Graphics Coprocessor | Broadcom VideoCore VI |
| Graphics Description | Dedicated |
| HumanInterface Input | Buttons |
| Keyboard Description | Standard QWERTY keyboard |
| Hard Disk Description | SSD |
| RAM Memory Technology | SRAM |
| Video Output Interface | HDMI |
| Connectivity Technology | HDMI, USB |
| Graphics Card Interface | Integrated |
| Memory Storage Capacity | 1 TB |
| Specific Uses For Product | Personal |
| Display Resolution Maximum | 250x122 |
| Personal Computer Design Type | Barebone |
