Hydraulic Spreader Tool, Portable Flange Wedge Expander, Alloy Steel Stretching Pliers, Maximum Spread 81mm, Ideal for Pipeline Maintenance

The Manual Hydraulic Flange Expander is a durable and precision-engineered tool essential for maintenance, inspection, testing, and valve replacement in industrial piping systems. With a powerful 10-ton working capacity, it effectively spreads flanges to a maximum spacing of 81mm, providing efficient access for repairs or parts replacement.Parameters:- Working capacity: 10T- Top clearance: 6mm- Maximum spacing: 81mm- Oil volume: 70cm³- Net weight/gross weight: 11Kg/15Kg- Packing size: 480*180*155mmFeatures:- High Performance: 10T hydraulic power ensures reliable flange separation.- Precision Design: 6mm top clearance allows for a secure fit and controlled operations.- Optimal Oil Volume: 70cm³ of hydraulic oil guarantees smooth and consistent pressure throughout use.- Durable & Portable: Weighs 11kg (15kg gross) and features a compact packing size of 480×180×155mm for easy handling.Package includes:- 1 Manual hydraulic flange expander

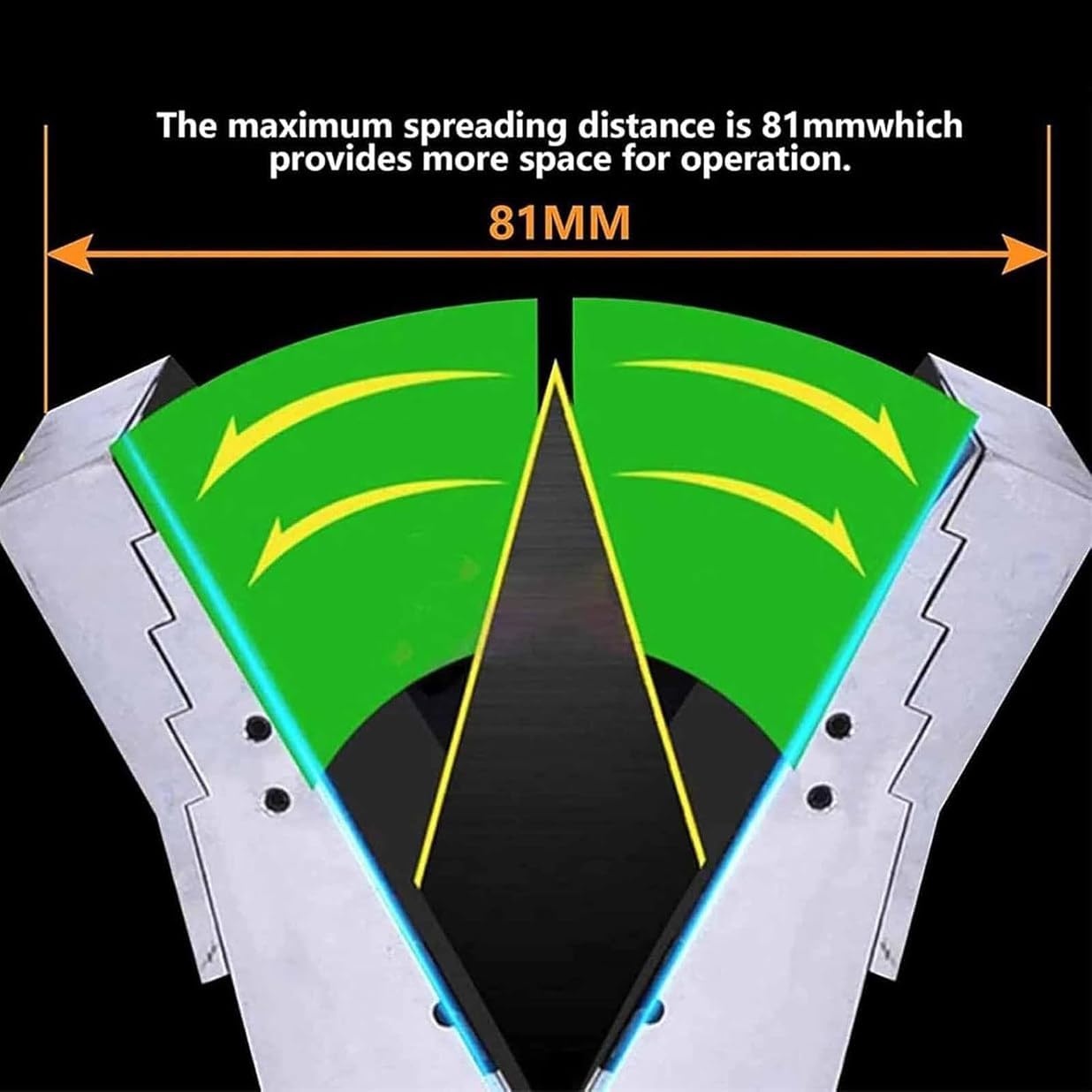

• POWERFUL SEPARATION FORCE: Effortlessly separate tight pipe flanges with robust expansion force and quick oil return. Equipped with a 10T hydraulic cylinder pressure and a maximum expansion distance of 81mm, perfect for heavy-duty applications.

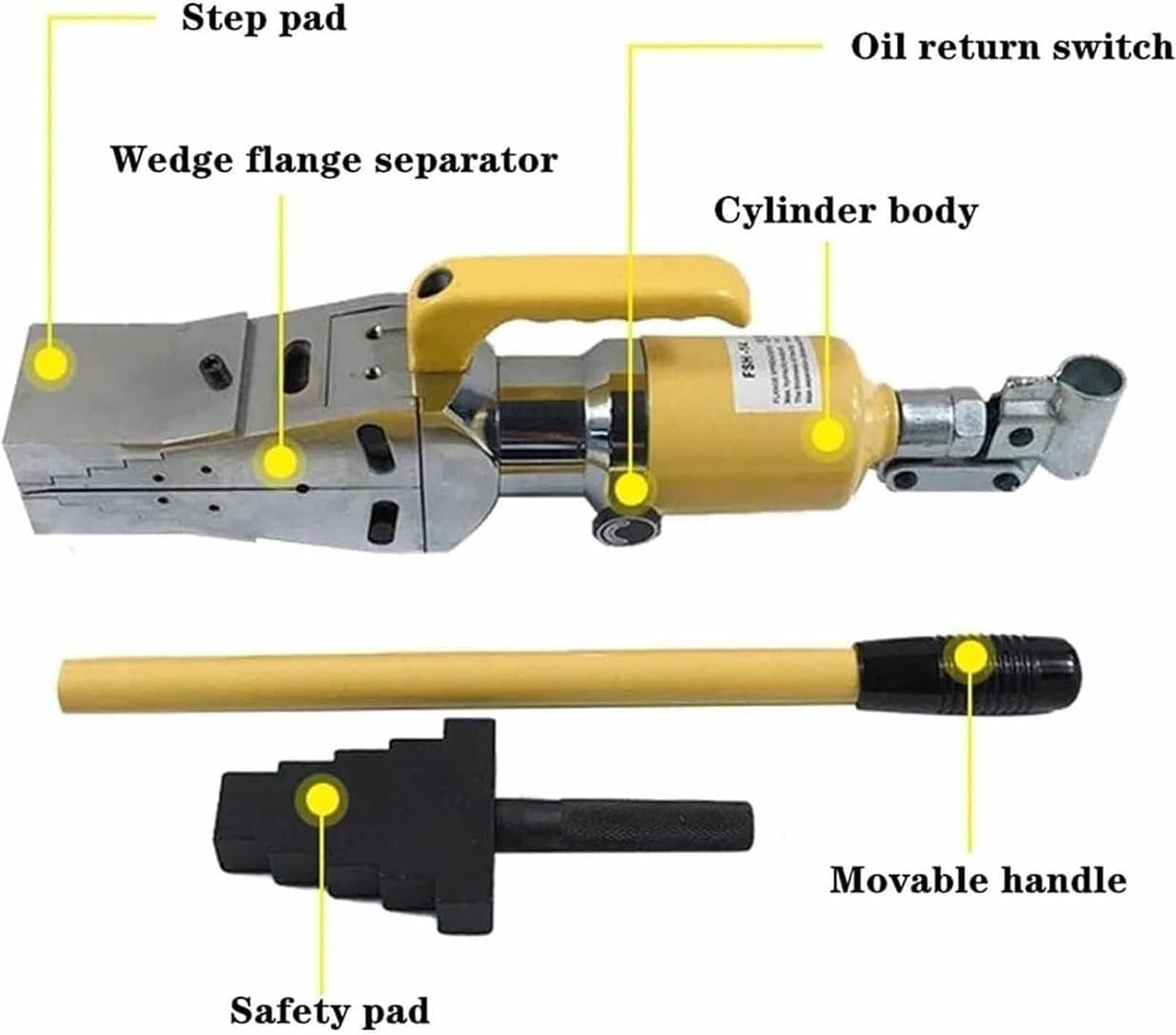

• PREMIUM MATERIAL: The pliers head is crafted from heat-treated alloy steel, providing a superior expansion force. The enlarged oil cylinder features a smooth inner wall, excellent sealing capabilities, and zero oil leakage for dependable performance. The reinforced plunger offers high wear resistance.
• HIGH EFFICIENCY HYDRAULIC: The heavy-duty cylinder ensures exceptional airtightness while delivering a consistent 10T separation force. With a 70ml oil capacity, the operation remains smooth and powerful, making it ideal for demanding tasks.
• 6MM THICK TIP: The flange spreader's tip measures only 6mm in thickness for quick separation. As long as the socket surpasses the opening size, separation can be achieved easily, providing ample space for operations.
• EASY ONE-HAND OPERATION: Adjust the pressure relief valve switch by rotating it. Turn to the open direction for pressurizing and to the closed direction for depressurizing. Suitable for pipeline maintenance, repairs, inspections, and valve replacements.
